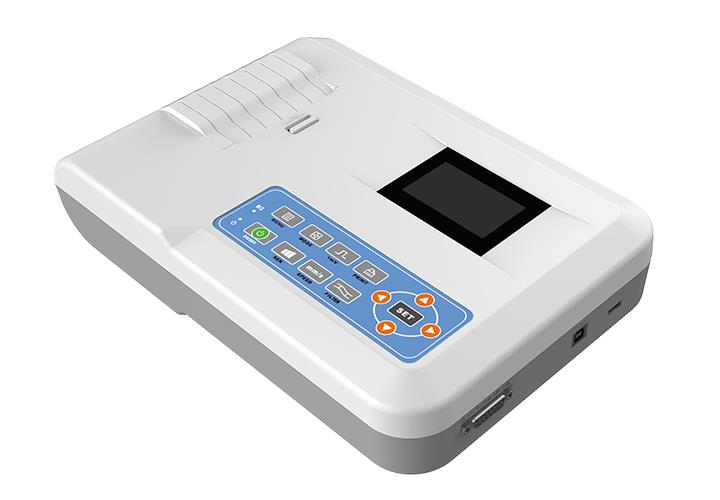

Contec Three Channel ECG Machine 300GA

ECG300GA is an Electrocardiograph which can collect 12-lead ECG signal simultaneously and print waveform by the thermal printing system. It features in, recording and displaying ECG waveform in AUTO/Manual mode, measuring and diagnosing ECG waveform parameters automatically, prompting for “Lead off” and “Lack of paper”, multi-language interface, case database management. Features: 1). Sync collection for 12-lead ECG, adopt digital signal processing technology and get high-quality ECG waveform via power frequency filter, baseline filter and EMG filter of ECG signal. 2). Display of 1/3/6/12-lead ECG, print mode, sensitivity, paper speed and filter state, etc. on one screen, convenient for contrastively diagnosing. 3). Multiply printing modes and formats, including manual, auto 4×3, auto 3×4 1, auto 3×4, auto 2×6 1, auto 2×6, etc. Waveform length printed can be adjusted, and with timed print function, which meets different requirements. 4). With the functions of auto-analysis and auto-diagnosis for routine ECG parameters, provide measurement results and auto-diagnosis conclusion for HR, P-R interval, P Duration, QRS Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5) S(V1), etc. which reduces the doctor’s burden. 5). Build-in memory stores 15 cases, optional SD card stores up to 100 cases, which is convenient for doctor to review case and statistic. 6). Multi- language(Chinese, English) interface and report. 7). Optional ECG-Sync software, connect with PC by USB2.0 interface to form a ECG workstation, import real-time data to the software for analyzing and report printing, and old cases stored in Electrocardiograph can be uploaded to PC. 8). Power supply: AC/DC and built-in rechargeable lithium battery. In optimal DC state, up to 4-hour standby time, continuous print 70-minute and 175-ECG, which meets the requirements of visiting a patient at home and body examination. Contents of Box: Lead Cable Limb Electrodes Set Of Chest Electrodes Thermal Recording Paper Power Cord Earth Wire User Manual Additional Information: One Year Warranty
