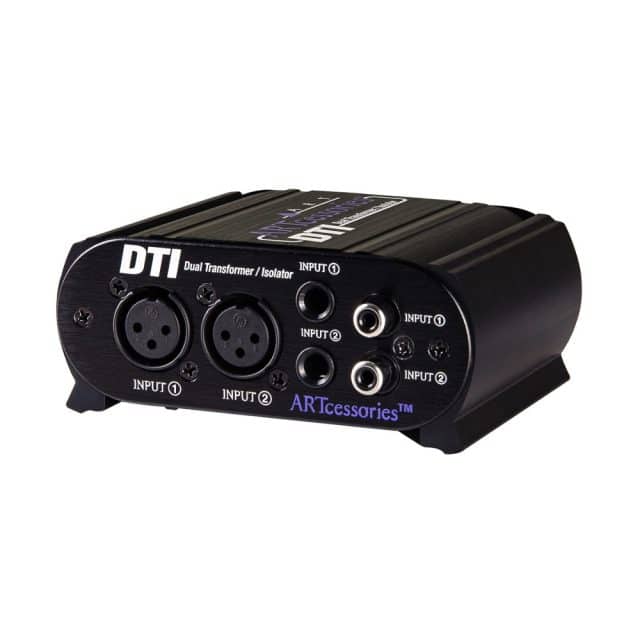

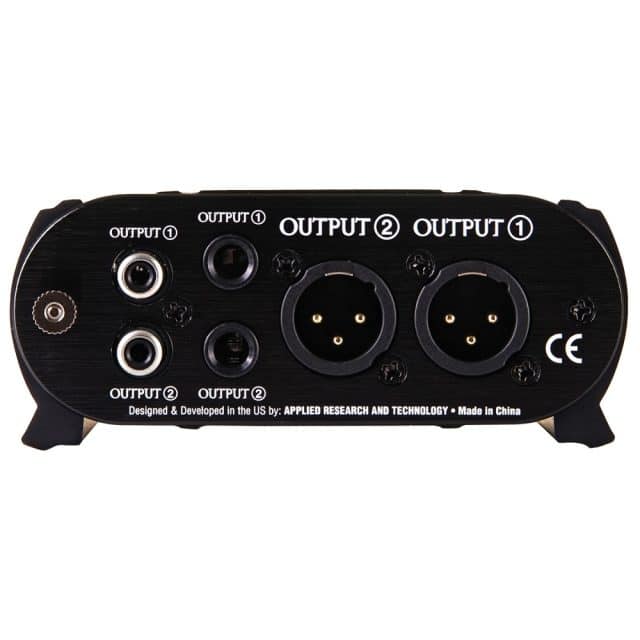

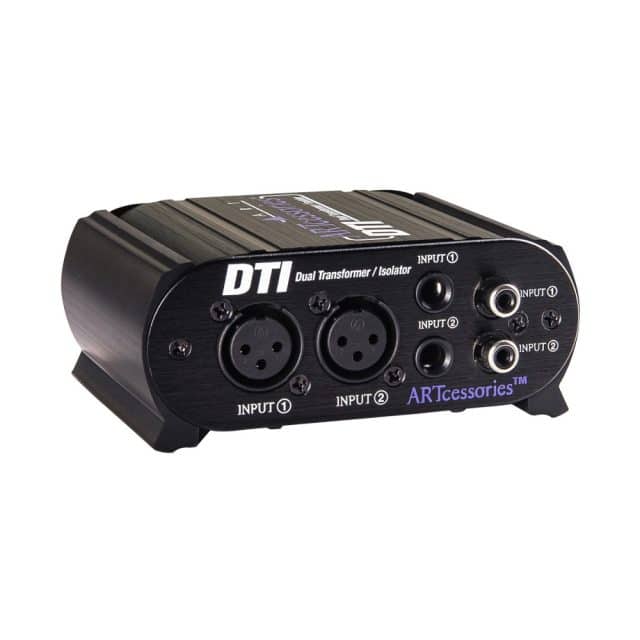

Description DTIDual Transformer / Isolator“I was so impressed that the DTI is now permanently in my problem-solving kit box. Highly recommended.” – Sound on Sound (Link) The DTI Dual Transformer / Isolator uses a pair of high-performance transformers to reduce hum and ground loop noise, separating the input and output signal grounds for total isolation between two systems. The transformers are wound for 1:1 unity gain, and have an extremely flat and wide frequency response. Even at high signal levels, they provide clean, transparent sound. With XLR, 1/4” TRS, and RCA connectors on all inputs and outputs, the DTI is flexible and easy to integrate. Featuring a rugged aluminum enclosure and a passive design that doesn’t require external power, the DTI is built for years of reliable use. Need a rackmount solution with more channels? Check out the T8.Features 2x XLR Inputs and Outputs 2x 1/4″ Inputs and Outputs 2x RCA Inputs and Outputs 10 Hz – 50 kHz Frequency Response 0.01% THD (Typical at 1 kHz, 18 dBU) Passive Design – No Power Required SpecificationsActive or Passive PassiveInputs 2x Balanced XLR2x Balanced / Unbalanced 1/4″ TRS2x RCAOutputs 2x Balanced XLR2x Balanced / Unbalanced 1/4″ TRS2x RCAFrequency Response 10 Hz – 50 kHz ( /- 0.5 dB @ 4 dBu)Total Harmonic Distortion 0.01% (Typical @ 1 kHz, 18 dBu)< 0.05% @ 100 Hz, 24 dBuInsertion Loss 0.4 dB (100 kΩ Load)5.5 dB (600Ω Load)Dimensions (HWD) 3.5″ x 4.2″ x 1.75″8.9 cm x 10.7 cm x 4.45 cmWeight 0.75 lbs / 340 g
