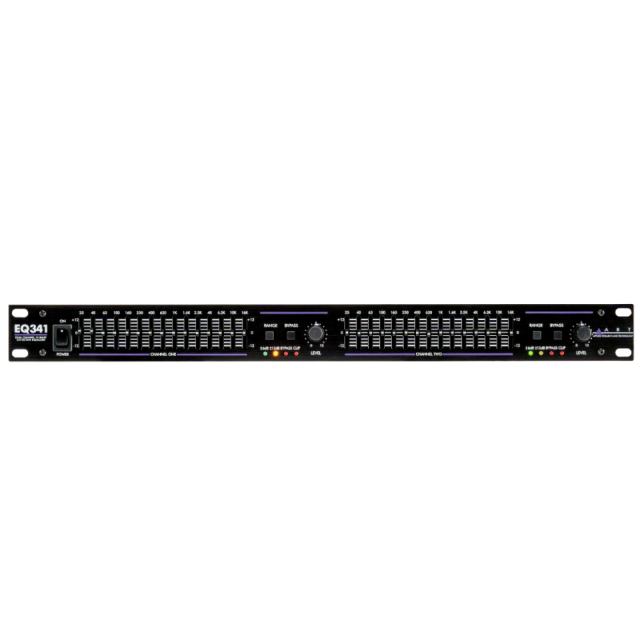

ART-EQ341 Dual 15-Band Graphic EQ

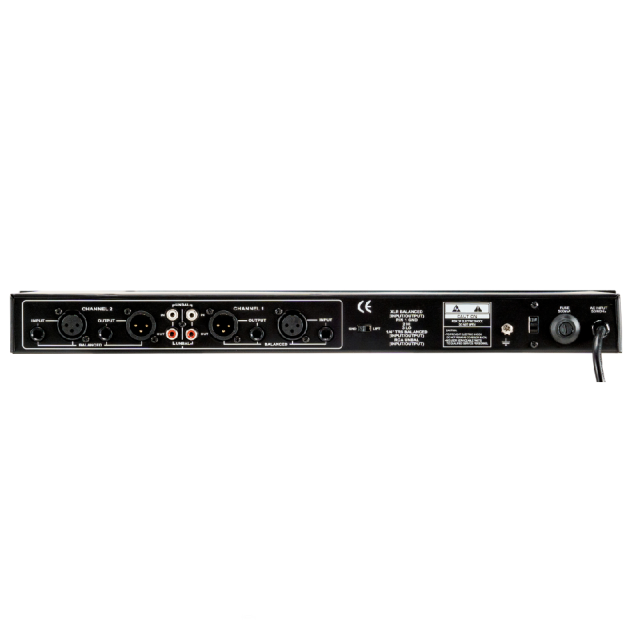

Description ART 300-Series graphic equalizers are designed for live sound, studio, and installation audio applications to provide intuitive sound shaping, versatile features, and silent operation. The EQ341 is a dual-channel 15-band EQ. Each channel has an independently switchable range of 6 or 12 dB, master level control, and bypass switch to quickly compare the dry and processed signals. The rear panel has balanced XLR, balanced 1/4” TRS, and unbalanced RCA connectors, so the EQ341 is easy to integrate into any system. It also features a ground lift switch to help eliminate hum. Looking for even more control? Check out the dual 31-band EQ355. Features Dual 15-Band Graphic EQ 20mm Sliders with Centre Detent Switchable 6 dB or 12 dB Range Master Level Controls Balanced XLR and 1/4″ TRS Inputs and Outputs Unbalanced RCA Input and Output 1U Rackmount Specifications Channels 2 Bands per Channel 15 (2/3 Octave, ISO Spacing) Accuracy /- 3% of Centre Frequency Sliders 20 mm with Centre Detent Range /- 6 dB or /- 12 dB Inputs 2x Balanced XLR and 1/4″2x Unbalanced RCA Input Impedance 20 kΩ (Balanced)15 kΩ (Unbalanced) Maximum Input Level 22 dBm (Level Control at Centre) Outputs 2x Balanced XLR and 1/4″2x Unbalanced RCA Output Impedance Level <150Ω (Typical) Frequency Response 20 Hz to 20 kHz ( /- 0.5 dB) Signal to Noise Ratio -94 dB Total Harmonic Distortion 0.01% Channel Separation >50 dB Overload LED Threshold 6 dB below Clipping (All Filters Flat) Dimensions (HWD) 1.75” x 19” x 5.5”4.4cm x 48.3 x 14 cm Weight 4.85 lbs. / 2.2 kg
