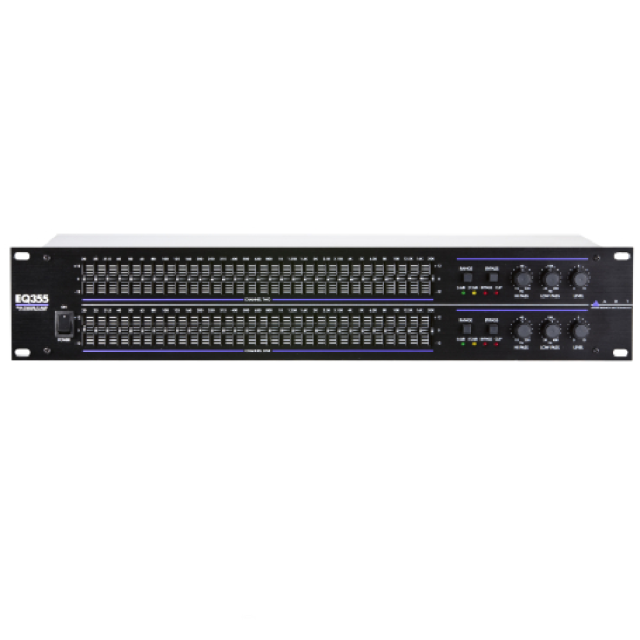

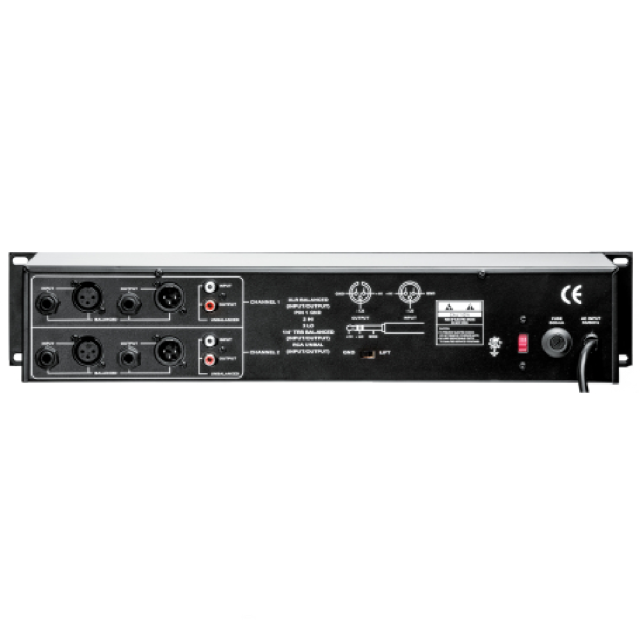

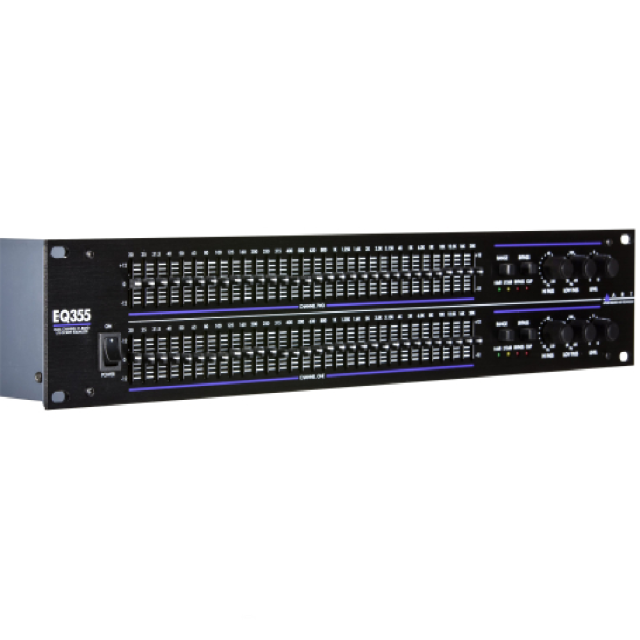

Description ART 300-Series graphic equalizers are designed for live sound, studio, and installation audio applications to provide intuitive sound shaping, versatile features, and silent operation. The EQ355 is a dual-channel EQ with 31 bands per channel. Each channel has an independently switchable range of 6 or 12 dB, variable high-pass and low-pass filters, master level control, and bypass switch to quickly compare the dry and processed signals. The rear panel has balanced XLR, balanced 1/4 TRS, and unbalanced RCA connectors, so the EQ355 is easy to integrate into any system. It also features a ground lift switch to help eliminate hum. Just need a single channel? Check out the EQ351. Features Dual 31-Band Graphic EQ 20mm Sliders with Centre Detent Switchable 6 dB or 12 dB Range Variable High-Pass and Low-Pass Filters Master Level Controls Balanced XLR and 1/4″ TRS Inputs and Outputs Unbalanced RCA Input and Output 2U Rackmount Specifications Channels 2 Bands per Channel 31 (1/3 Octave, ISO Spacing) Accuracy /- 3% of Centre Frequency Sliders 20 mm with Centre Detent Range /- 6 dB or /- 12 dB Inputs 2x Balanced XLR and 1/4″2x Unbalanced RCA Input Impedance 20 kΩ (Balanced)15 kΩ (Unbalanced) Maximum Input Level 22 dBm (Level Control at Centre) Outputs 2x Balanced XLR and 1/4″2x Unbalanced RCA Output Impedance Level <150Ω (Typical) Frequency Response 20 Hz to 20 kHz ( /- 0.5 dB) Signal to Noise Ratio -94 dB Total Harmonic Distortion 0.01% High-Pass Filter 10 Hz – 250 Hz (12 dB per Octave) Low-Pass Filter 3 kHz – 40 kHz (12 dB per Octave) Overload LED Threshold 6 dB below Clipping (All Filters Flat) Dimensions (HWD) 3.5” x 19” x 78.9 cm x 48.3 cm x 17.8 cm) Weight 9.0 lbs / 4.1 kg
