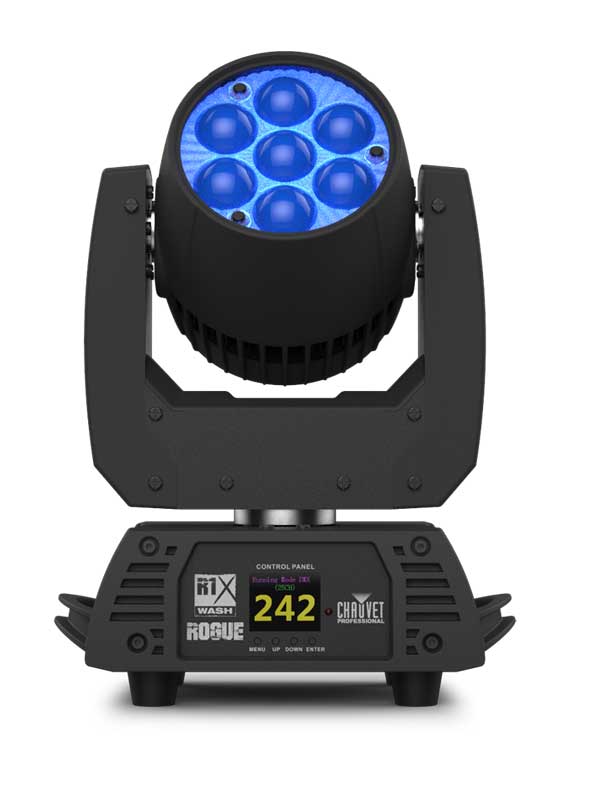

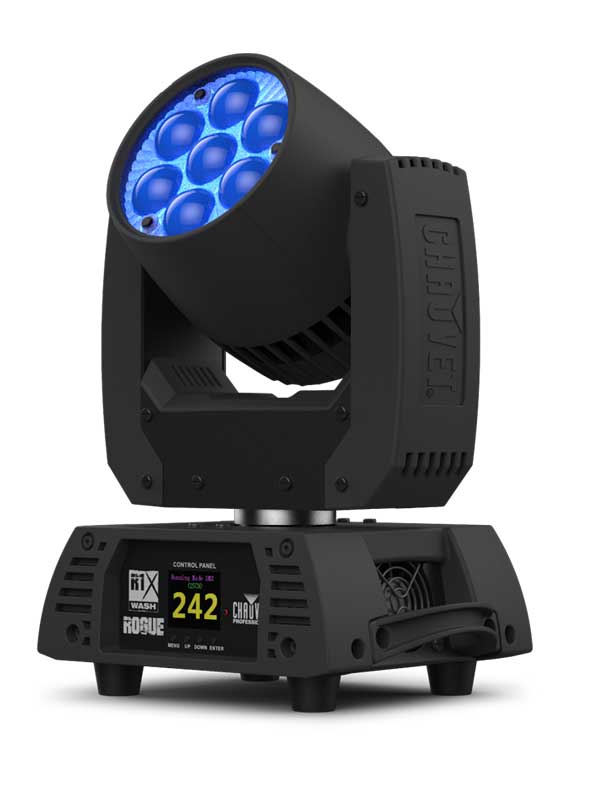

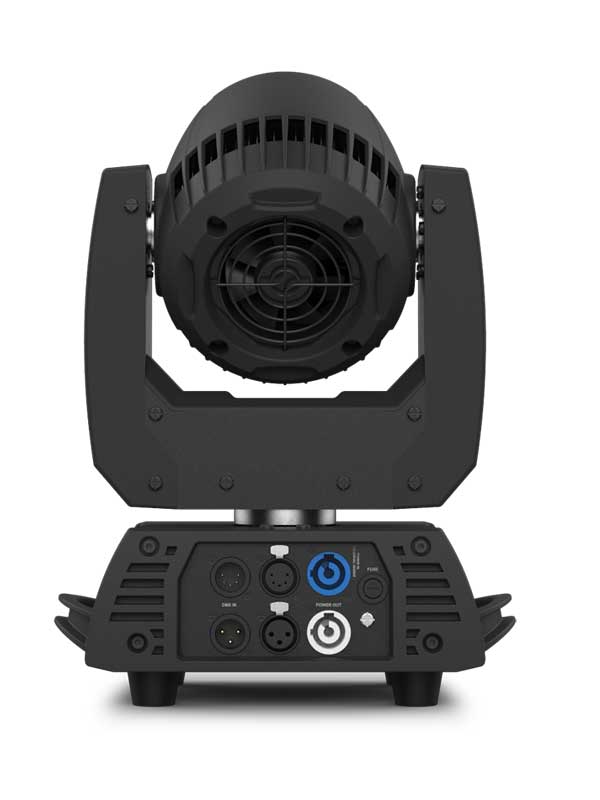

CHAUVET PRO Rogue R1X Wash – 157W LED Wash Moving Head Light Fixture

Description At a Glance Fully featured RGBW LED yoke wash fixture with zoom 16-bit dimming of master dimmer as well as individual colors for smooth control of fades 7 RGBW LEDs, 25 W each 3- and 5-pin DMX input/output connections Unique lens design for excellent color blending Fast, smooth pan and tilt movement RDM enabled for remote addressing and trouble shooting Selectable LED maximum output to match legacy Rogue R1 Washes 6 distinct dimming modes for advanced control Omega mounting bracket, fits all Rogue and Maverick fixtures Easy to read OLED display with simple, effective menu options Simple and complex DMX channel profiles for programming versatility Specifications Optical Light Source: 7 LEDs (quad-color RGBW) 25 W, (1.5 A), 50,000 hours life expectancy Color Temperature (range): 2800 to 10000 K Beam Angle: 8° to 30° Beam Angle: 8° to 30° Field Angle: 11° to 48° Zoom Angle: 11° to 48° Lumens – Source: 4,000 Lumens – Output: 2,900 Illuminance (11°): 3,280 lux @ 5 m Illuminance (48°): 293 lux @ 5 m PWM Frequency: 1200 Hz Dynamic Effects Pan and Tilt: 540°/230° Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 230° tilt Dimmer: Electronic Shutter/Strobe: Electronic Zoom: Motorized Strobe Rate: 0 to 20 Hz Standalone Color Mixing: Yes Color Temperature Presets: Yes Built-in Automated Programs: Yes Customizable Programs: No Recall Custom Programs: No Construction / Physical Dimensions: 7.36 x 10.43 x 13.94 in (187 x 265 x 354 mm) Weight: 13.6 lb (6.2 kg) Exterior Color: Black Housing Material: High-impact flame-retardant polymer Connections Power Connection: Edison (Local) plug to Neutrik® powerCON® Power Input: Neutrik® powerCON® Power Output: Neutrik® powerCON® Data Connectors: 3- and 5-pin XLR Cable Length (power): 5 ft (1.5 m) Control Control Protocol: DMX, RDM DMX Channels: 14, 15, 19 or 21 Modes/Personalities: 4 personalities (14, 15, 19, 21) Electrical Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging) Power Linking: 10 units @ 120 V; 17 units @ 208 V; 20 units @ 230 V Power and Current: 157 W, 1.35 A @ 120 V, 60 Hz Power and Current: 154 W, 0.76 A @ 208 V, 60 Hz Power and Current: 164 W, 0.67 A @ 230 V, 50 Hz Certifications / Qualifications CE, MET, FCC IP Rating: IP20, dry location What’s Included Rogue R1X Wash Neutrik® powerCON® power cord Omega bracket with mounting hardware
