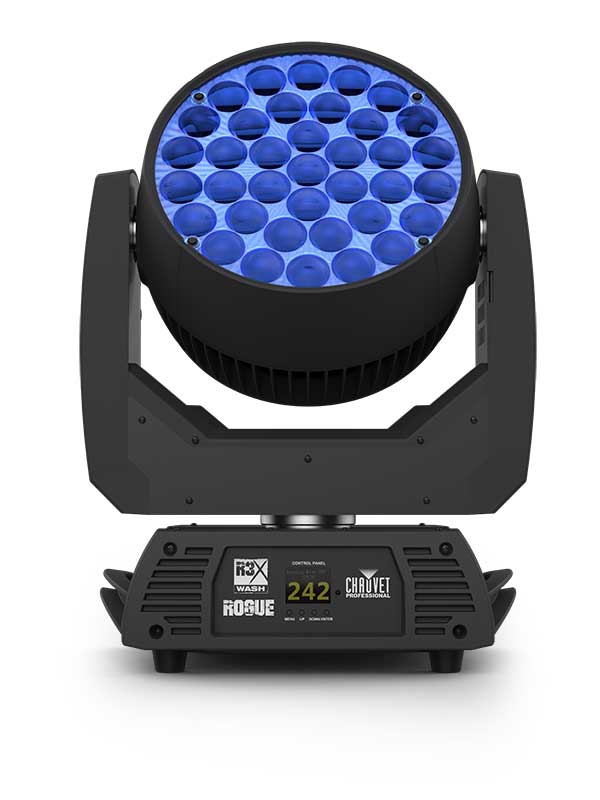

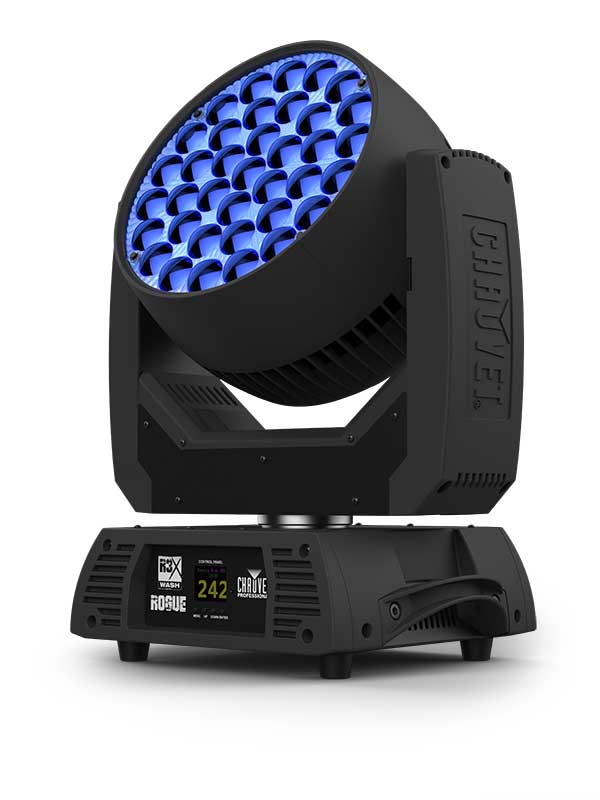

CHAUVET PRO Rogue R3X Wash Color Wash Moving Head (RGBW)

Description At a Glance Fully featured RGBW LED yoke wash fixture with LED zone control and zoom 16-bit dimming of master dimmer as well as individual colors for smooth control of fades 37 RGBW LEDs, 25 W each 3- and 5-pin DMX input/output connections 9 zones of LED control for pixel mapping effects Unique lens design offers excellent color mixing Fast, smooth pan and tilt movement RDM enabled for remote addressing and trouble shooting Selectable LED maximum output to match legacy Rogue R3 Washes 6 distinct dimming modes for different dimming needs Omega mounting bracket, fits all Rogue and Maverick fixtures Easy to read OLED display with simple, effective menu options Simple and complex DMX channel profiles for programming versatility Specifications Optical Light Source: 37 LEDs (quad-color RGBW) 25 W, (1.5 A), 50,000 hours life expectancy Color Temperature (range): 2,800 to 10,000 K Beam Angle: 8° to 30° Field Angle: 12° to 49° Zoom Angle: 12° to 49° Lumens – Source: 17,000 Lumens – Output: 11,500 Illuminance (12°): 19,000 lux @ 5 m Illuminance (49°): 1,730 lux @ 5 m Dynamic Effects Pan and Tilt: 540°/230° Pan and Tilt Ranges: 180°, 360°, 540° Pan/90°, 180°, 230° Tilt Dimmer: Electronic Shutter/Strobe: Electronic Zoom: Motorized Strobe Rate: 0 to 20 Hz Standalone Color Mixing: Yes Color Temperature Presets: Yes Dim Curves: 4 Built-in Automated Programs: Yes Customizable Programs: No Recall Custom Programs: No Construction / Physical Dimensions: 15.51 x 11.73 x 18.50 in (394 x 298 x 470 mm) Weight: 38.5 lb (17.46 kg) Exterior Color: Black Housing Material: High-impact flame-retardant polymer Connections Power Connection: Edison (local) plug to Neutrik® powerCON® Power Input: Neutrik® powerCON® Power Output: Neutrik® powerCON® Data Connectors: 3- and 5-pin XLR Cable Length (power): 5 ft (1.5 m) Control Control Protocol: DMX, RDM DMX Channels: 21, 62, 71, 107 Modes/Personalities: 4 personalities Electrical Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging) Power Linking: 2 units @ 120 V; 4 units @ 208 V; 4 units @ 230 V Power and Current: 650 W, 5.38 A @ 120 V, 60 Hz Power and Current: 687 W, 3.05 A @ 208 V, 60 Hz Power and Current: 692 W, 2.94 A @ 230 V, 50 Hz Certifications / Qualifications CE, MET, FCC IP Rating: IP20, dry location What’s Included Rogue R3X Wash Neutrik® powerCON® power cord Omega bracket with mounting hardware
