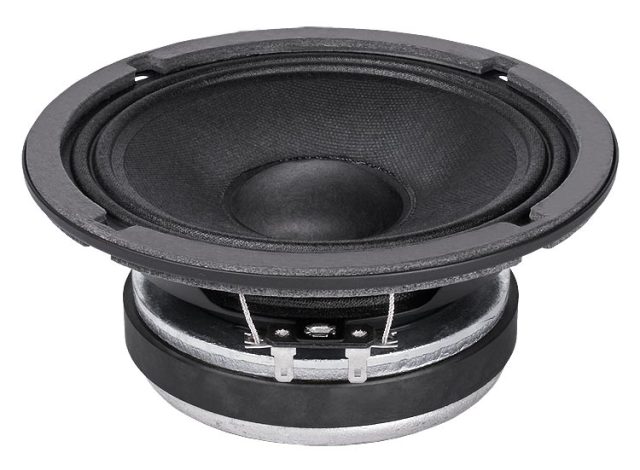

Faital-Pro 6FE200 6″ Mid-Range 260-Watts Car Audio Woofer Speaker 8-Ohm

Description FaitalPRO 6FE200 6″ Professional Midrange Speaker 8 Ohm FaitalPRO’s open back 6FE200 6″ professional midrange speaker is purpose-built to cover the critical midrange  in three-way speakers, but also works great as a door speaker in car audio applications.  To ensure absolute signal fidelity, FaitalPRO built the 6FE200 with a strong ferrite ring-powered motor.  Not only does this increase sensitivity, it keeps the Qts at a respectable figure of 0.67. Made in Italy. Product Specifications Nominal Diameter6″Power Handling (RMS)130 Watts Power Handling (max)260 WattsImpedance8 ohms Frequency Response85 to 6,000 HzSensitivity95 dB 1W/1m Voice Coil Diameter1.46″ Thiele-Small Parameters Resonant Frequency (Fs)120 HzDC Resistance (Re)5.9 ohms Voice Coil Inductance (Le)0.4 mHMechanical Q (Qms)6.23 Electromagnetic Q (Qes)0.75Total Q (Qts)0.67 Compliance Equivalent Volume (Vas)0.11 ft.³Mechanical Compliance of Suspension (Cms)0.15 mm/N Diaphragm Mass Inc. Airload (Mms)11.5gMoving Mass Of Diaphragm (Mmd)11.06 Maximum Linear Excursion (Xmax)4.67 mmSurface Area of Cone (Sd)118 cm² Materials of Construction Cone MaterialPaperSurround MaterialCloth Voice Coil Wire MaterialAluminumVoice Coil FormerKapton® / Polyimide Basket / Frame MaterialSteelMagnet MaterialFerrite Mounting Information Overall Outside Diameter6.59″Baffle Cutout Diameter5.59″ Depth3.03″Bolt Circle Diameter6.06″ # Mounting Holes4 Optimum Cabinet Size (determined using BassBox 6 Pro High Fidelity suggestion) Sealed Volume0.25 ft.³Sealed F3143 Hz Vented Volume0.31 ft.³Vented F376 Hz FaitalPRO 6FE200 6″ Professional Midrange Speaker 8 Ohm Weight 4.87 lbs
