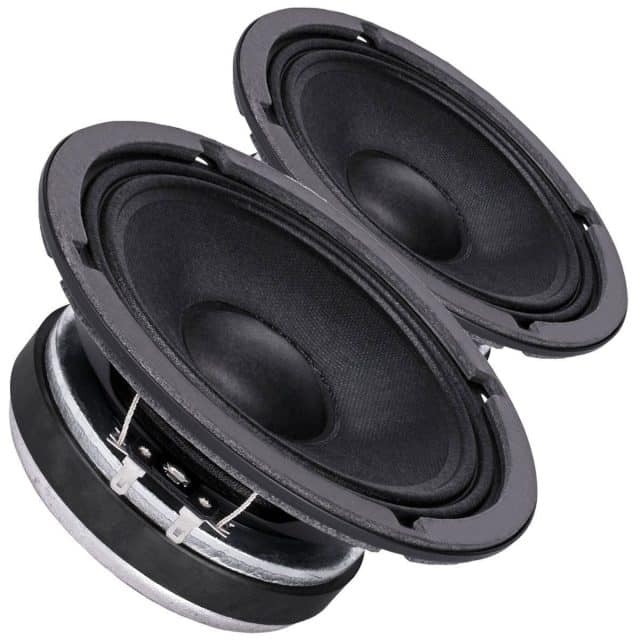

Description Nominal Specifications Nominal Diameter 160 mm (6 in) Overall Diameter 167.4 mm (6.59 in) Bolt Circle Diameter 154 mm (6.06 in) Baffle Cutout Diameter 144 mm (5.67 in) Depth 77 mm (3.03 in) Flange and Gasket Thickness 8 mm (0.31 in) Net Weight 2 Kg (4.4 lb) Shipping Box(Single Carton Box) 190 x 185 x 103 mm (7.5 x 7.3 x 4.1 in) Shipping Weight 2.2 Kg (4.9 lb) Technical Parameters Nominal Impedance 8 Ohm Minimum Impedance 6.8 Ohm AES Power Handling (1) 130 W Maximum Power Handling (2) 260 W Sensitivity (1W/1m) 95 dB Frequency Range 85÷6000 Hz Voice Coil Diameter 37 mm (1.46 in) Winding Material Al Former Material Kapton Winding Depth 12 mm (0.47 in) Magnetic Gap Depth 8 mm (0.31 in) Flux Density 1 T Magnet Ferrite Ring Basket Material Steel Demodulation No Cone Surround (3) M-Roll NET Air Volume filled by Loudspeaker 0.45 dm^3 (0.016 ft^3) Spider Profile 1x constant height waves Thiele and small parameters Fs 120 Hz Re 5.9 Ohm Qes 0.75 Qms 6.2 Qts 0.67 Vas 3.6 dm^3 (0.13 ft^3) Sd 131 cm^2 (20.23 in^2) Xmax (4) 4.67 mm Xdamage (5) 10.4 mm Mms 11.5 g Bl 8.2 N/A Le 0.4 mH Mmd 9.8 g Cms 0.15 mm/N Rms 1.4 Kg/s Eta Zero 0.80 % EBP 160 Hz PART NUMBER (P/N) Faston Terminals – 8 Ohm Version 01604017
